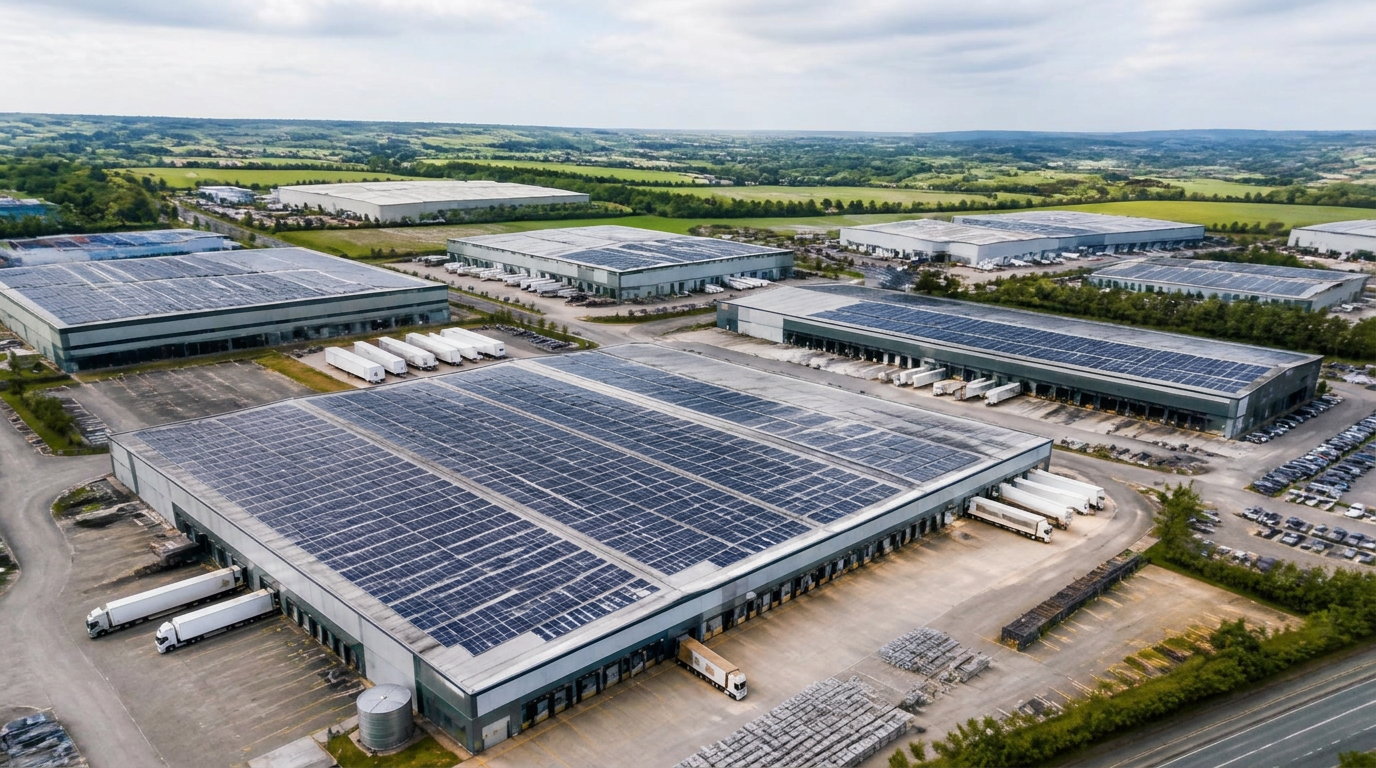

Commercial rooftop solar
A practical guide to the decisions that protect your people, property and solar investment — before installation, at handover and throughout operation.
A whole-life approach
Roof-mounted photovoltaic systems can provide reliable, lower-carbon electricity for decades. Their long working life also means that roof condition, fire safety, electrical protection, weather exposure, maintenance access and eventual component replacement must be resolved at the outset.
Every building is different. A warehouse with combustible insulation, a flat roof exposed to wind, a food-production site with extract deposits and a property adding battery storage will each need a different risk response. The right starting point is a site-specific assessment led by competent professionals.
Risk management lifecycle
Review fire, roof, structural, electrical, access, weather and operational risks before fixing the system design.
Specify compliant equipment, secure fixings, safe cable routes, isolation, ventilation and maintainable access.
Inspect, test and document the installation, then train the building team before handover.
Monitor performance and faults while keeping controls, inverters, roof routes and safety information accessible.
Use competent contractors for planned inspection, testing, cleaning, thermography and repairs throughout asset life.
Before installation
Decisions made at this stage determine how safely the system can be installed, operated, maintained and eventually altered.
Complete a suitable fire-risk assessment before installation. Identify combustible roof coverings or insulation, fire compartmentation, escape routes and the effect the array may have on firefighting. Avoid installing over combustible roofs wherever practicable and agree the design with relevant advisers and the property insurer.
Obtain evidence that the roof and supporting structure can carry panels, mounting systems and cabling alongside local wind, snow, ice and rainwater loads, with an appropriate safety margin. Fixing and ballast designs should address uplift, turbulence, movement, corrosion, waterproofing and thermal expansion.
Use designers and installers competent in both DC and AC systems. Correctly specify cable sizes, routes, connectors, earthing, protection and ground-fault detection. Provide clearly labelled isolation for the array, inverter and AC supply, with emergency controls placed where responders can reach them safely.
Select independently tested modules suited to the site and current applicable standards. Assess shading through the seasons, aggressive fumes, dust, kitchen extracts, vegetation and bird activity. These can reduce yield, create hot spots or damage wiring and connections.
Plan safe roof access, edge protection, lifting routes and working space before covering the available area. Leave practical routes to inverters, isolators, cable runs and individual modules so inspections and replacements do not require unnecessary disturbance to the rest of the array.
Treat storage as a separate engineered risk. Battery chemistry, siting, separation, ventilation, fire detection, impact protection, emergency response and high-energy discharge all require specialist assessment. Lithium-ion thermal runaway and lead-acid hydrogen generation need different controls.
Commissioning and handover
Commissioning should follow the current applicable installation guidance and prove that the system has been inspected, tested, documented and explained to the building operator.
Commissioning inspection and test results for the complete system
As-built drawings showing arrays, cable routes, inverters and isolation points
Structural assessment, fixing design and roof-weatherproofing records
Equipment data sheets, warranties and applicable conformity evidence
Operating, shutdown and emergency procedures with visible hazard signage
Training for the owner or occupier responsible for the building
A documented inspection and maintenance schedule with named responsibilities
Relevant approvals, grid documentation and insurer or fire-service engagement records
Emergency planning belongs in the handover.
Clearly identify DC and AC isolation, keep diagrams available to responders, display electrical hazard signage and consider early engagement with the local Fire and Rescue Service. The building team should understand that modules may continue generating in daylight even when other parts of the system are isolated.
During operation
Local exposure, roof pitch, array layout and fixing quality affect weather resilience. Inspect after significant events and check for movement, impact damage, water pooling and disturbed cables or seals.
Failed fixings, cable-entry seals, weatherproofing or inadequate allowance for thermal movement can damage the roof and building. Repairs may require local panel removal, so accessibility matters.
Panels, inverters and controls all produce heat. Maintain suitable gaps, locate equipment in cool, clean areas and provide ventilation, temperature warnings and safe shutdown where required.
Leaves, nesting material and contamination can obstruct ventilation, provide combustible material and damage cables. Restrict unauthorised access and include routine checks beneath and around the array.
Connections, cabling, controls and inverters can deteriorate or fail through age, heat, mechanical stress, surge or lightning. Active monitoring should make abnormal operation and shutdowns visible.
Modules generate DC electricity whenever exposed to sufficient light. Switching off the building supply does not make every panel and cable safe, so signage, isolation strategy and emergency information are essential.
Inspection and maintenance
Follow the manufacturers' and installers' requirements, keep warranty conditions under review and use competent contractors with safe access equipment.
In addition to planned visits, arrange checks after exceptional weather or whenever monitoring indicates an unexplained fall in output.
Visual inspection for cracked or loose modules, damaged cables, arcing, corrosion, failed seals and insecure fixings
Electrical testing by a contractor competent in both DC and AC installations
Thermographic examination of modules, connectors, junction boxes, inverters and controls to identify hot spots
Performance and inverter monitoring against expected output, with faults investigated promptly
Removal of leaves, nests, litter and other debris that can obstruct ventilation or become fuel
Cleaning at a site-appropriate interval using methods and contractors that will not damage the modules
Additional inspection after high winds, hail, heavy snow, lightning or other exceptional events
Recorded defects, repairs and replacements, preserving warranty and compliance evidence
Competence and standards
Relevant UK references may include the Microgeneration Certification Scheme, current editions of BS 7671, BS EN 62446-1, applicable module safety and performance standards, building regulations and recognised fire-safety guidance such as RC62.
Applicability depends on system scale, technology, building use and location. Ask the project team to identify the current standards, duties and approval routes that apply, rather than relying on an historic list.
